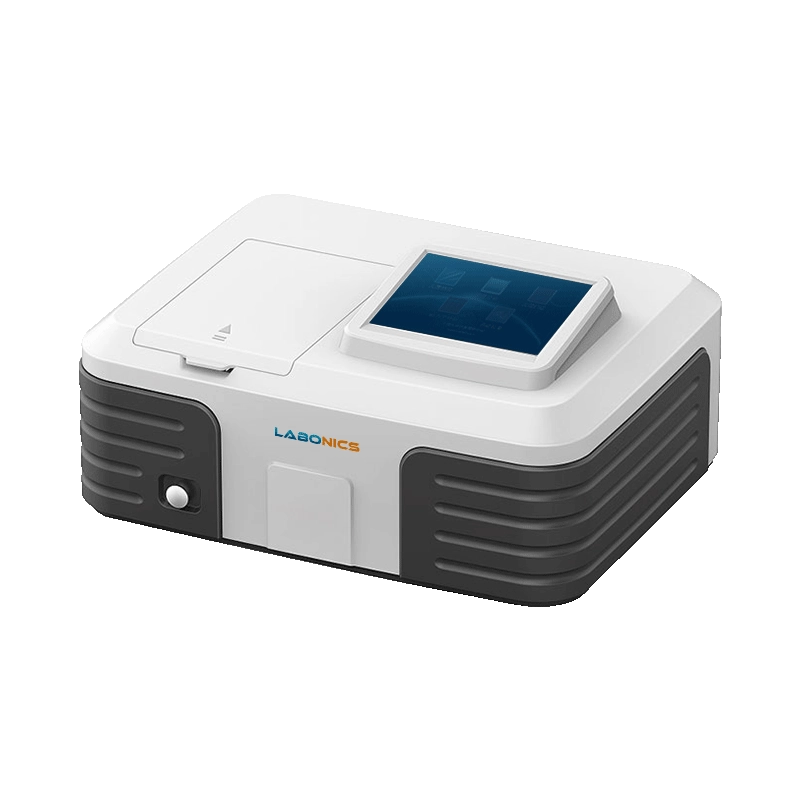

UV Single Beam Spectrophotometer Labo101UVS

Overview

UV Single Beam Spectrophotometer Labo101UVS has an optical system design to ensure stable and reliable results. It has wavelength range of 190 to 1100 nm. Large touch screen interface enables easy operation and visualization of test parameters. Spectrophotometers can be directly connected to a printer for A4 format data and graph printing.

Specifications:

Wavelength Range	190 to 1100 nm
Spectral bandwidth	2 nm
Wavelength Accuracy	± 0.5 nm
Wavelength Repeatability	≤0.1 nm
Photometric Accuracy	± 0.2%T(0-100%T), ±0.002Abs(0-0.5Abs), ± 0.004Abs (0.5-1.0Abs)
Photometric Repeatability	≤ 0.1%T (0-100%T), 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs)
Photometric Range	0-200% T, -0.3-3.0A, 0-9999C
Stability	± 0.001 A/h at 500 nm
Baseline flatness	± 0.001 A
Noise	± 0.0005 A
Stray light	0.05% T at 220 nm, 360 nm
Detector	Silicon Photodiode
Display	800 × 480 touch screen
Data Output Port	USB
Print Port	USB Port
Source	Tungsten Lamp & Deuterium Lamp
Power Supply	AC 220 V/50 Hz or AC 110 v/60 Hz
Dimension	460 × 380 × 180 mm
Weight	20 Kg

Features:

- LCD display for simple presentation of data
- Performs wavelength scanning, kinetics studies, multi-wavelength testing
- Internal computer host allows it to perform multiple functions
- Minimizes impact of plate deformation on the optical system
- Reduces effect of external vibrations on the optical system
- Automatic power-on self-test and system positioning function
- Simple data transfer using USB disk connection

Applications:

UV Single Beam Spectrophotometer is used across pharmaceutical, petroleum, clinical diagnostics, chemical industries etc.
