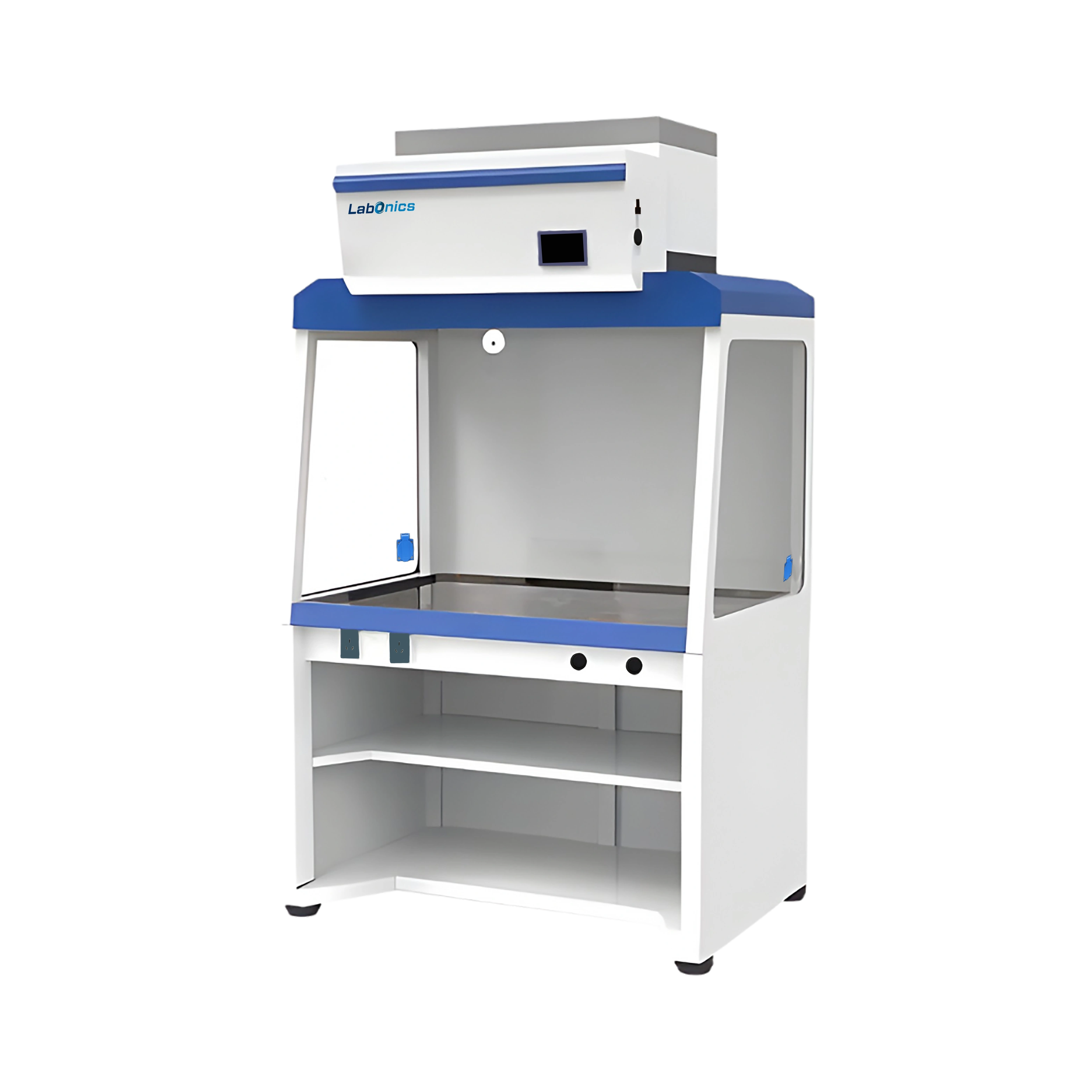

Ductless Fume Hood Labo140DFH – 880 mm

Name: Ductless Fume Hood Labo140DFH
Brand: Labonics
SKU: Labo140DFH
Rating: 5 (878 reviews)

Ductless Fume Hoods are ventilation units equipped with a base cabinet and a noise level of ≤ 58 dB. The filters capture fumes from circulating air, which is then vented into the room. They use HEPA filter, filtering 99.99% toxins thus providing an excellent product, environmental and user protection. They are easier to install since they do not require ventilation ducts.

Category: Ductless Fume Hood

SKU: Labo140DFH

Brand: Labonics

Availability:In Stock

Ask to expert
Download pdf catalog

Labo140DFH - Specifications

Work Surface Height

880 mm

Maximum opening

650 mm

Air Volume

136m3/h

Air Velocity

0.25 ~ 0.35m/s

Noise

≤58db(A)

Lamp

Fluorescent lamp, 12W*2

Blower

Built-in blower

Front Window

Acrylic window, manual, reversal design

Material

Exterior	1.0mm cold rolled steel spraying, electrostatic spraying
Side Window	Acrylic
Work Table	Marble countertops

Filters

HEPA, 1pc

External Dimensions

1230 x 830 x 2120 mm

Internal Dimensions

1110 x 740 x 700 mm

Packing Dimensions

Main Body	1380 x 1040 x 1490 mm
Base cabinet	1380 x 1040 x 1060 mm

Net Weight

270 kg

Gross Weight

320 kg

Features

Cold rolled steel made structure
Fluorescent lamp with significantly energy cost saving
3 side transparent Acrylic window, manual and reversal design
5 inch LCD touch screen panel, easy to operate
Memory function in case of power failure
8° slope front ergonomic design, free working posture
Temperature and humidity sensors
Marble counter top, easy cleaning
Electronic control system, anti overload, anti-electric shock, stable performance
Probes to detect air pollution and filter conditions Oil proof explosion light

Applications

Used in research & development processes, powder containment (e.g. pharmaceutical compounding) chemical fume control, mobile laboratories and field research, light acid etching, etc.
